From US Pat. No. 5,457,804 a multiplication circuit is known in which the multiplication time for multiplications with double precision is shortened, either a more significant half or a less significant half of an input word of the multiplication circuit being fed to a conventional Booth decoder via a multiplexer.

There are numerous algorithms for the accelerated calculation of a multiplication. In the classic Booth algorithm, two bits of the multiplier are always considered at the same time and a factor is formed from this, with which the multiplicand is multiplied, and this product is added to the partial product in each case. This method works with n-uniform shift operations by one bit position to the right (division by 2) and n / 2 additions, where n is the word length of the multiplier. No sign corrections are required for two's complement representations.

A faster modified method has been proposed in [1], [2]. With this method, three bits of the multiplier are considered simultaneously, which are decoded into 5 different factors (0; + -1; + -2; see table 1). For this algorithm only n / 2 shift operations by two bit positions to the right (division by 4) and n / 2 additions are required. With both of the methods mentioned, decoding can be started either with the LSB (Least Significant Bit) or with the MSB (Most Significant Bit); special handling of the signs is not necessary. Decoding starting with the LSB has the advantage [3] that the word length of the product is limited to the word length of the multiplicand by using the Horn scheme. The result obtained in this way agrees with the first m-bits of the exact n + n-bit wide product. The modified Booth algorithm is described in somewhat more detail below, since it serves as the starting point for the invention.

The multiplier Y and the multiplicand X are given by their two's complement representation. with y

for j = 0, 1, 2, ..., m-1

_{i}∈ {0,1}, for i = 0, 1, 2, ..., n-1 and x_{j}∈ {0,1},for j = 0, 1, 2, ..., m-1

By combining two successive summation steps, the multiplier Y in can be calculated for i = 1, 3, 5, ..., n-1 and y

be reshaped.

_{n}= 0be reshaped.

The product of the multiplication P is thus obtained with the multiplicant X for i = 1, 3, 5, ..., n-1, with y

and with for i = 1, 3, 5, ..., n-1

_{n}= 0and with for i = 1, 3, 5, ..., n-1

In Fig. 1, the basic processing of the multiplier X with the modified Booth decoder is shown. Starting at the LSB side, three bits are always decoded at the same time and then the decoding window is shifted two bit positions to the left. The bit y

_{n}is set to 0, and if the word length n is odd, an additional bit is generated by doubling the multiplier MSB's. The corresponding decoding table can be found in Table 1. This does not have to be explained further because it results from [3].Control signals, namely the factor signal C and the shift signal K, are generated in accordance with the coding rules in Table 1

_{0}and the sign signal S_{i}. The control signals control the specific sequence of the individual multiplication cycles. 2 shows a block diagram of a typical Booth multiplier architecture. At the beginning of a multiplication, the multiplicand X is first loaded into the register REGX and the accumulation register ACCU is set to 0 and initialized. According to the value of the multiplier Y and the corresponding result of the Booth decoding according to Table 1, the individual partial products are generated in n / 2 steps according to Equation 6. To do this, the multiplicand X must be multiplied by 0, 1 or 2 in each iteration. The sliding unit SHE1 is used for this in FIG. 2. The multiplication by the factor 2 means that a left shift operation of the multiplicand by one bit position must be carried out. The partial product PP is calculated in each iteration with the aid of a shift unit SHE2, which divides the partial product of the previous iteration by 4 (shift to the right by two bit positions). After n / 2 iterations, the product is available in the ACCU accumulation register. It should be noted that the multiplicand X must have a doubled MSB so that no overflow can occur during the execution of the additions or subtractions. With the aid of the multiplier according to FIG. 2, the equations given in Table 1 under the heading "Operation" are thus implemented. The factor signal C is used to let the multiplicand X through to the shift unit SHE1 or to set it to 0. Such an operation is required according to the first and last lines of Table 1. A multiplication by 2 is required for the multiplicand X according to Table 1 in the 4th and 5th lines. The addition or subtraction takes place in an arithmetic logic unit ALU as a function of the sign signal S._{i}. The last column of Table 1 shows when the multiplicand X to the previous partial product PP_{i + 2}must be added or subtracted. The partial product PP_{i + 2}is in the accumulation register ACCU and is multiplied by 0.25 in the shift unit SHE2 and then to form the next partial product PP_{i}fed back to the ALU. The assignment of the multiplier bits y_{i-1}, y_{i}, y_{i + 1}Table 1 shows the individual operations.The aim of the invention is to modify the Booth algorithm explained above in order to achieve a simplification of the multiplier. This goal is achieved according to the features of claim 1.

A further object is to provide a Booth multiplier which works according to the modified Booth algorithm.

Finally, the object is to provide a decoding circuit with which the control signals for the multiplier are generated.

Developments of the invention emerge from the dependent claims.

- Fig. 1
- the decoding window of the multiplier according to the known methods,
- Fig. 2
- the well-known Booth multiplier,
- Fig. 3
- a block diagram of the modified Booth multiplier,
- Fig. 4
- the decoding window of the multiplier according to the modified Booth algorithm,
- Fig. 5
- a block diagram of the Booth decoding circuit,
- Fig. 6
- a realization of the Booth decoder.

The block diagram according to FIG. 3 shows, in comparison to the block diagram of FIG. 2, that there is no longer a shift unit SHE in the left branch of the ALU. In this left branch only a multiplication by 0 or 1 and a sign reversal is carried out. For this, however, a variable right shift operation is carried out in the accumulator loop (right ALU branch). The rest of the structure of the multiplier according to FIG. 3 corresponds to that of the multiplier according to FIG. 2.

The multiplicand X is stored in the REGX register. This is either let through or set to 0 via the MULT unit, which is controlled by the factor signal C. For this purpose, the factor signal C is generated from the multiplier signal Y in a circuit C-ERZ in accordance with the operations in Table 1. The multiplier Y also becomes that Sign signal S

_{i}generated in the circuit S-ERZ. The shift of the partial product is carried out in the shift unit SHE3, a multiplication by 1/2, 1/4 or 1/8 being carried out by shifting to the right, depending on the operations to be carried out.A possible coding of the multiplier Y is given in Table 2. As can be seen from Table 2, an expansion of the decoding size to 5 bits is necessary, as is also described in [3]. The sign signal S

_{i}indicates whether the multiplicand adds X (p_{i}= 0) or subtracted (p_{i}= 1), the factor signal C indicates the factor with which the multiplicand X is weighted (C = 1 multiplication by 1, C = 0 multiplication by 0), and the control signals K._{1}(Shift right operation by one bit position if K_{1}= 1) and K_{2}(Shift right operation by two bit positions if K_{2}= 1) define the slide vector for the slide unit SHE3. The value of the control signals K_{1}and K_{2}and the multiplication of the shift unit SHE3 to be carried out accordingly can also be taken from table 3. As in the previous algorithm, the bit y_{i}represents the current position. The bits y_{n}, y_{n + 1}and y_{n + 2}are initially set to 0 (see FIG. 4) and if the word length n is odd, an additional bit is generated by doubling the multiplier MSB's.The multiplication proceeds similarly to the modified Booth algorithm with a constant shift vector (FIG. 2). First, the multiplicand is loaded into the REGX register and the ACCU accumulation register is initialized. Starting at the LSB side, the 5-bit wide decoding window is placed over the two least significant bits of the multiplier Y (see FIG. 4) and shifted to the left by 2 bit positions after each iteration. The result of the decoding determines the actual execution of the operations during an iteration. The partial product PP

_{i}is calculated with the help of the variable shift unit SHE3, which allows shifts to the right by 1, 2 or 3 bit positions. After n / 2 iterations, the product is available in the ACCU accumulation register. So that no overflow can occur during the execution of the additions or subtractions, the multiplicand X must have a doubled MSB.The correctness of Table 2 can be checked using Table 1. With the logical link H

_{1}it is detected whether a multiplication by 2 has to be carried out in the original coding according to Table 1, and with the corresponding logical link H_{2}it is detected whether a multiplication by 2 was carried out in the previous cycle. With the multiplier according to FIG. 3, a multiplication by 2 is implemented by an additional right shift operation of the partial product by one bit position. The partial product then no longer has to be shifted to the right by 2, but by only one bit position in the next iteration. The operations described can be carried out with the logical functions H._{1}and H_{2}can be detected. The control signals K_{1}and K_{2}for the sliding unit SH3 can be determined as follows:Since the sign of the multiplicand Y is doubled (y

_{0}= y_{1}), the condition is H_{1}never fulfilled in the last iteration, and no additional cycle is necessary for a further shift operation, so that n / 2 shift operations and n / 2 additions or subtractions are also necessary for the modified Booth algorithm with variable shift vectors.The control signals S

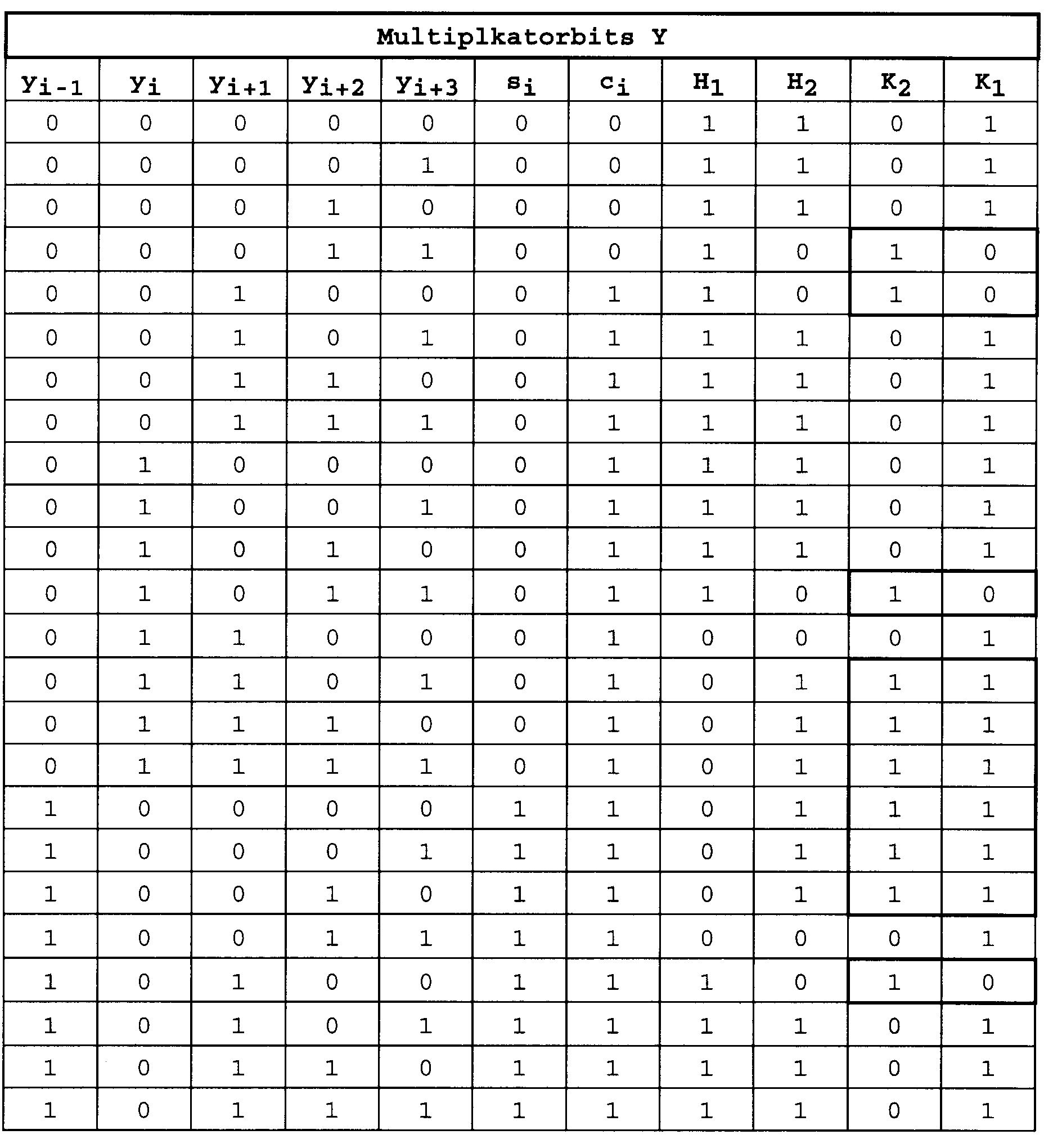

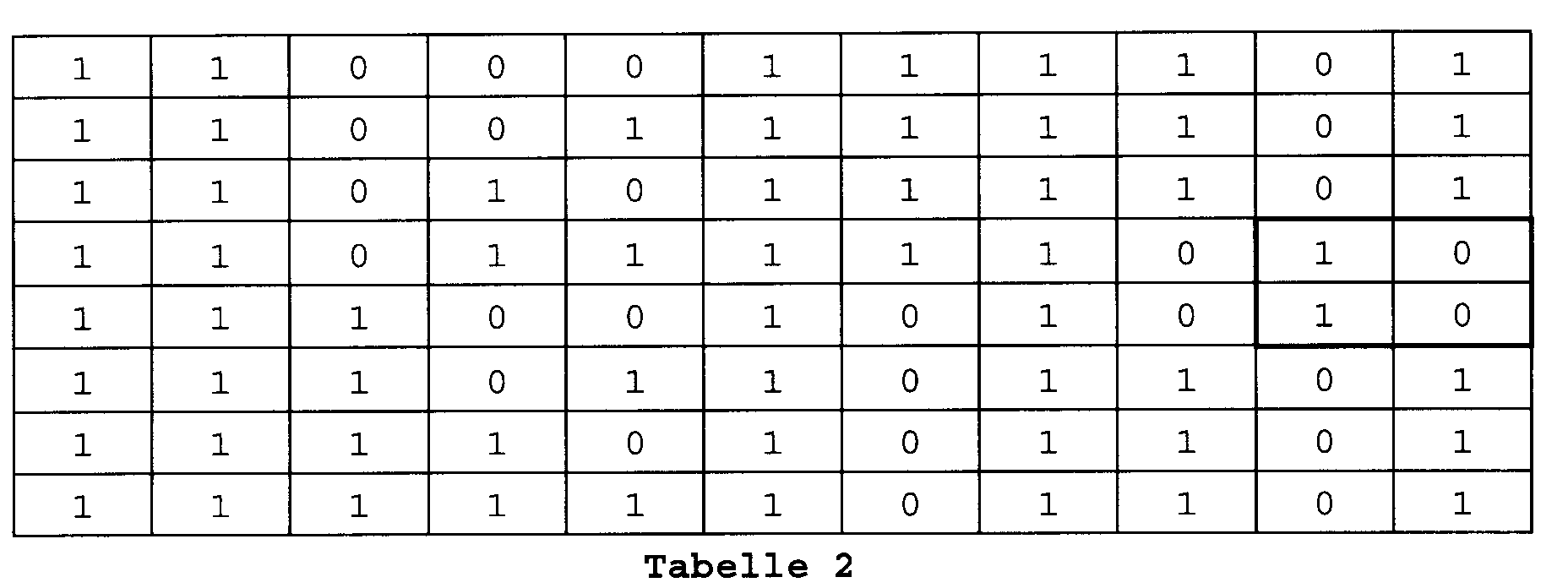

_{i}and C can be generated as follows:Table 2 shows the 5 bits of the multiplier Y, which are detected by the decoding window, as well as the factor signal C and the sign signal S, as well as the results of the H operations

_{1}and H_{2}or K_{1}and K_{2}. The control signals K_{1}and K_{2}are framed when the control signal K_{2}is binary 1. Table 3 extracts the different cases from Table 2 and indicates which multiplication is to be carried out in the shift unit SHE3. If both the control signal K_{1}as well as K_{2}is binary 1, then it is multiplied by 1/8 by three shift operations to the right.When the control signal K

_{1}is binary 1 and the control signal K_{2}binary 0, then only a shift operation or a multiplication by 1/2 takes place. If the control signal is K_{1}binary 0 and the control signal K_{2}binary 1, then two shift operations or a multiplication by 1/4 take place.5 shows the block diagram of the Booth decoding circuit DEKOY with a variable shift vector. The multiplier Y is stored in an n-bit wide latch LA with the aid of the transfer signal Ü. The decoding window function is formed with the aid of 5 multiplexers MUX1 to MUX5, each with 8 inputs.The inputs are selected one after the other via the control lines S1 to S8. The control signals S are generated from the 5 bits of the current decoding window with the aid of the actual Booth decoder B-DOC

_{i}, C, K_{1}and K_{2}generated according to equations 7 to 12.6 shows the block diagram of the Booth decoder B-DOC. Since the logical functions H

_{1}and H_{2}are identical, they can, as shown in FIG. 6, be combined into a function by storing the results from the previous cycle. The result of the function H_{1}is stored in the register REG with the transfer signal CL and corresponds to the result of the function H in the next clock period_{2}. At the beginning of Booth decoding, the register content must be set to logic 0. Since the function H_{2}the only one that got the signals y_{i + 2}and y_{i + 3}required, the multiplexers MUX1 and MUX2 in FIG. 5 can be dispensed with.The individual circuits of FIG. 6 are illustrated by the symbols corresponding to those of equations 7-12. Corresponding circuits are known in the literature.
